How to Fit a Door Handle: A Step-by-Step Guide for a Perfect Installation

Fitting a door handle is a straightforward DIY project that can significantly improve the functionality and appearance of your doors. Whether you’re replacing an old handle or installing a new one, following the right steps will ensure a secure and professional finish. In this guide, we’ll walk you through the process of fitting a door handle, from preparation to final adjustments.

Tools and Materials You’ll Need

Before you start, gather the following tools and materials:

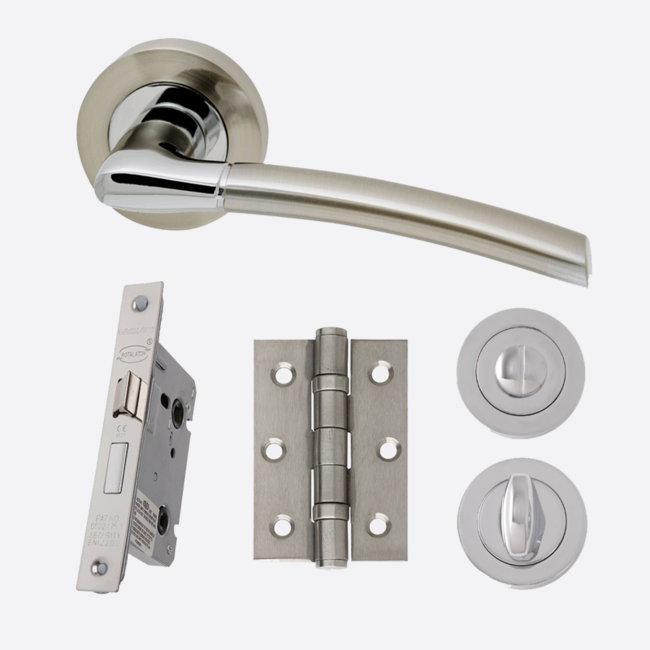

  • New door handle set
  • Screwdriver (flathead and Phillips)
  • Drill and drill bits
  • Measuring tape
  • Pencil
  • Chisel
  • Hammer
  • Masking tape
  • Level
  • Safety goggles and gloves

Step-by-Step Guide to Fitting a Door Handle

Step 1: Remove the Old Handle

If you’re replacing an existing handle, start by removing it:

  1. Unscrew the Handle: Use a screwdriver to remove the screws holding the old handle in place.
  2. Remove the Handle and Backplate: Carefully pull off the handle and backplate, exposing the latch mechanism.
  3. Remove the Latch: Unscrew and remove the latch mechanism from the door edge.

Step 2: Measure and Mark

Accurate measurements are crucial for a proper fit:

  1. Mark the Handle Height: Measure and mark the desired height for the new handle on both sides of the door, ensuring they are level.
  2. Position the Latch Plate: Center the latch plate on the door edge at the marked height and trace around it with a pencil.

Step 3: Drill Holes for the Handle

Prepare the door for the new handle installation:

  1. Drill the Latch Hole: Use a drill bit slightly larger than the latch mechanism to drill a hole in the door edge at the marked height.
  2. Drill the Handle Holes: Drill holes on both sides of the door where the handle will be installed. Ensure the holes align perfectly for smooth operation.

Step 4: Chisel the Latch Plate Recess

Create a recess for the latch plate to sit flush with the door edge:

  1. Score the Outline: Use a chisel and hammer to score along the traced outline of the latch plate.
  2. Chisel the Recess: Carefully chisel out the wood inside the scored outline to the depth of the latch plate, ensuring it sits flush with the door edge.

Step 5: Install the Latch

Secure the latch mechanism in place:

  1. Insert the Latch: Slide the latch mechanism into the drilled hole on the door edge.
  2. Secure the Latch Plate: Align the latch plate with the chiseled recess and secure it with screws.

Step 6: Fit the Door Handle

Attach the new handle to the door:

  1. Attach the Backplate: Align the backplate with the drilled holes and secure it with screws.
  2. Install the Handle: Position the handle over the spindle, ensuring it aligns with the latch mechanism, and secure it with screws.
  3. Repeat on the Other Side: Install the handle and backplate on the other side of the door, ensuring all components align and function smoothly.

Step 7: Test and Adjust

Ensure the handle operates correctly:

  1. Test the Handle: Check that the handle operates the latch smoothly and that the door opens and closes properly.
  2. Make Adjustments: If necessary, adjust the handle or latch plate for smoother operation and secure fit.

Tips for a Successful Installation

  • Use the Right Tools: Ensure you have the correct tools for the job to avoid damage and ensure a professional finish.
  • Measure Accurately: Double-check measurements and alignments before drilling or chiseling to avoid mistakes.
  • Take Your Time: Rushing can lead to errors. Take your time to ensure each step is done correctly.

Conclusion

Fitting a door handle is a manageable DIY project that can enhance the look and functionality of your doors. By following this step-by-step guide, you can ensure a secure and professional installation. Remember to measure accurately, use the right tools, and take your time for the best results. With a little patience and effort, you’ll have a perfectly fitted door handle in no time.
